Traxxas TRX-4 Sport Assembly Kit: 4WD (No electronics)
Traxxas TRX-4 Sport Assembly Kit: 4WD (No electronics)
Traxxas TRX-4 Sport Assembly Kit: 4WD (No electronics)
Traxxas TRX-4 Sport Assembly Kit: 4WD (No electronics)
Traxxas TRX-4 Sport Assembly Kit: 4WD (No electronics)

Traxxas TRX-4 Sport Assembly Kit: 4WD (No electronics)

Product code: TRX82010-4
Out of stock
Product Overview

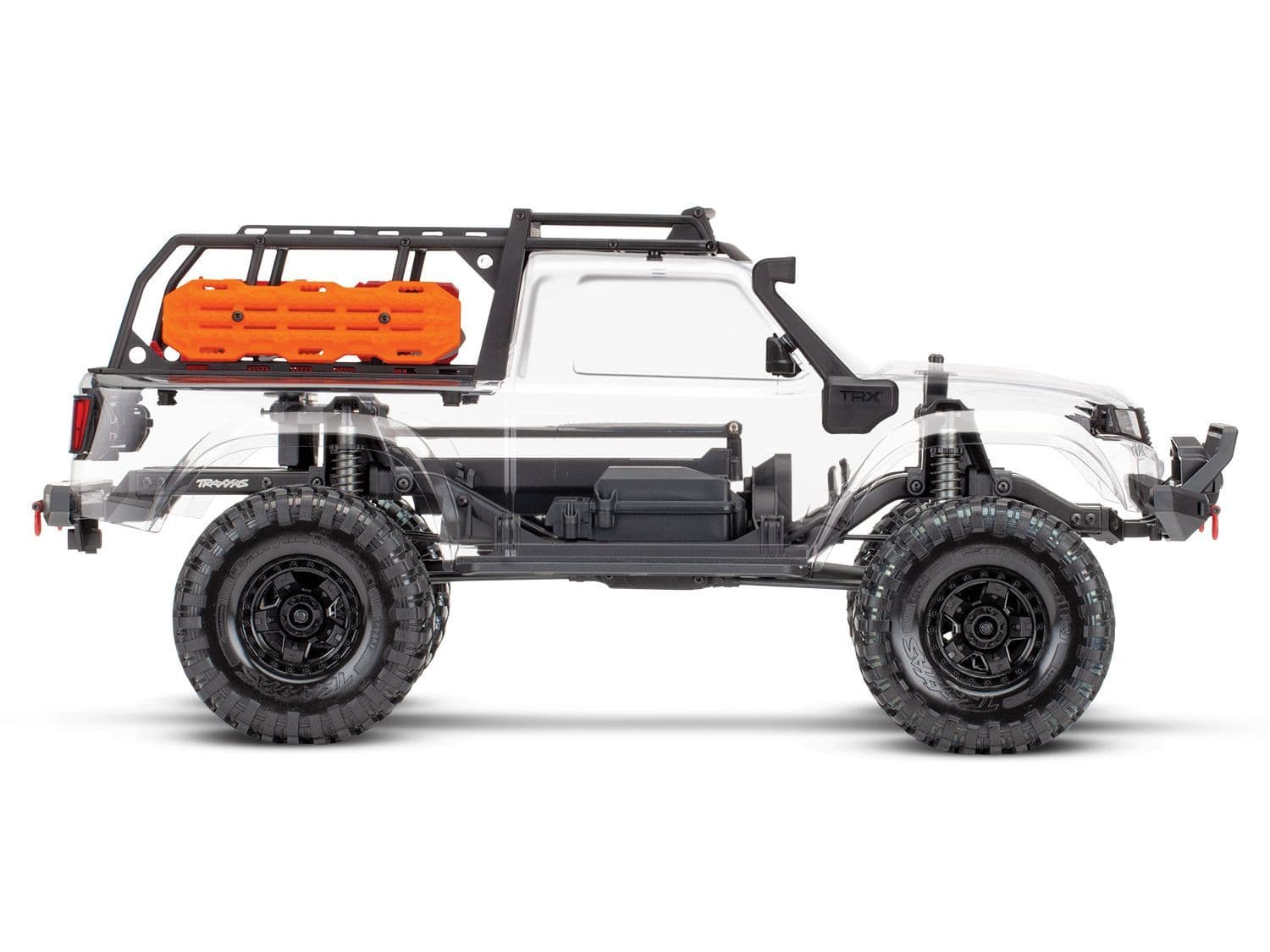

The Traxxas TRX-4 Sport is purpose built for trail-conquering RC fun with innovative technical features and rugged durability. The new TRX-4 Sport Unassembled Kit combines all the technical capability of the RTR truck, with the excitement of building your own kit. The TRX-4 Sport Kit assembles to form a roller chassis without electronics, battery, or charger. From mild to wild, enjoy ultimate build-it-yourself freedom to add your own motor, electronic speed control (ESC), servo, and radio system to the highly competent chassis. All the parts are organized neatly in labeled bags with pre-assembled shocks and suspension links. A fully illustrated color manual makes the kit as much fun to construct as it is to take off-road.

The Traxxas TRX-4 Sport Kit comes fully outfitted with an entyre complement of scale accessories as standard equipment. The expedition rack not only looks great, but provides rugged protection for the body. The body and expedition rack are outfitted with a replica snorkel, side mirrors, traction boards, fire extinguisher, jack, and gas cans for maximum scale detail. The front and rear injection molded grill and tail gate also include lenses to make installing LED lights a breeze!

The TRX-4 Sport Unassembled Kit isn't just for expert hobbyists. Traxxas goes the extra mile to make the full-color instruction book easy to follow and fun to use. Each section corresponds to a labeled bag with step-by-step assembly instructions. True-to-scale part illustrations and ruler charts make it easy to differentiate between different screws, bearings, and gears. Helpful assembly tips and clear illustrations take the frustration out of the assembly process. Have fun on the workbench and on the trail with the new TRX-4 Sport Kit.

The TRX-4 Sport Kit arrives ready to assemble with a full-color instruction guide, pre-cut clear body, and Expedition Rack with scale accessories. Key parts like shocks and suspension links come pre-assembled to make building easy and fun. Choose your own electronics, battery, and charger (sold separately) to complete your fully custom ride. A staff of skilled representatives is on hand to answer your questions via phone, website, or e-mail. Unmatched parts support keeps your Traxxas vehicle running strong with parts and support from thousands of hobby dealers worldwide. Traxxas goes the extra mile to ensure that your RC experience is easy and fun.

  • Easy to follow full-color assembly manual
  • True-to-scale part illustrations and ruler charts
  • Helpful assembly tips and clear illustrations
  • Clear TRX-4 Sport body
  • Body comes pre-cut and ready to mount
  • Includes window masking and decals
  • Includes Expedition Rack with scale accessories
  • Front grille and rear tail gate with lenses for LED lights
  • Rugged front and rear bumpers with red D-rings
  • (Requires polycarbonate paint)
  • Portal Axles
  • Increase ground clearance
  • Eliminate torque twist
  • Steel gears
  • Improve axle geometry and reduce strain on driveshafts
  • Rigid Steel Frame
  • 1.5mm thick steel frame rails increase torsional rigidity
  • Innovative design allows four wheelbase positions (300mm, 312mm (standard), 324mm, 336mm)
  • Adjustable rear shock tower positions
  • Bumpers adjust fore and aft
  • Rugged rock rails adjust for width
  • Wire routing clips integrated into frame rails
  • Drivetrain
  • Full-time shaft driven 4-wheel drive
  • Tough 6mm stub axles
  • Steel front CV driveshafts
  • Hardened steel rear axle shafts
  • Steel gear transfer case
  • Innovative Battery Compartments
  • Hinged battery strap allows quick and easy battery access
  • No pins to lose
  • Accommodates different height batteriesAccepts full-size long battery packsIntegrated compartment accepts smaller 1/16 scale batteries (with optional strap)
  • Transmission
  • Single-speed with steel gears
  • Twin friction plate slipper clutch
  • Easily removed for servicing
  • Steering
  • Accepts standard size servos
  • Superior 45° steering angle
  • Direct steering (no servo saver)Steering geometry corrected for bump steer
  • Suspension
  • Front - 3 link with panhard
  • Rear - Triangulated 4 link
  • Pre-assembled heavy-duty rod ends with steel hollow balls
  • 5mm diameter steel link rods with 4mm threaded ends
  • Pre-assembled aluminium GTS Shocks
  • Coilover GTS shocks exclusive to TRX-4 chassis
  • Silver-anodized aluminium bodies
  • Threaded bodies with collars easily adjust ride heightSilky smooth damping for the toughest trailsO-ring cap seal and dual X-ring shaft sealsShock oil included in kit
  • Wheels and Tyres
  • 1.9" Canyon Trail tyres with trail-tuned foam inserts
  • Tough black scale wheels
  • Trail tuned S1 rubber compound
  • 12mm steel hex
  • tyre glue required
  • Patented O-Ring sealed watertight receiver box keeps micro receivers dry
  • Sealed Ball Bearings
  • Hex hardware with rust-resistant black oxide coating

What You'll Need:

  • Transmitter
  • Receiver
  • Electronic speed control and motor
  • Steering servo
  • Battery
  • Battery charger
  • Metric hex drivers - 1.5mm, 2.0mm, 2.5mm
  • Basic hand tools - Screwdrivers, needle nose pliers
  • Traxxas Ultra-Premium Tire Glue (part #6468) or CA glue
  • Safety glasses
  • Polycarbonate paint
